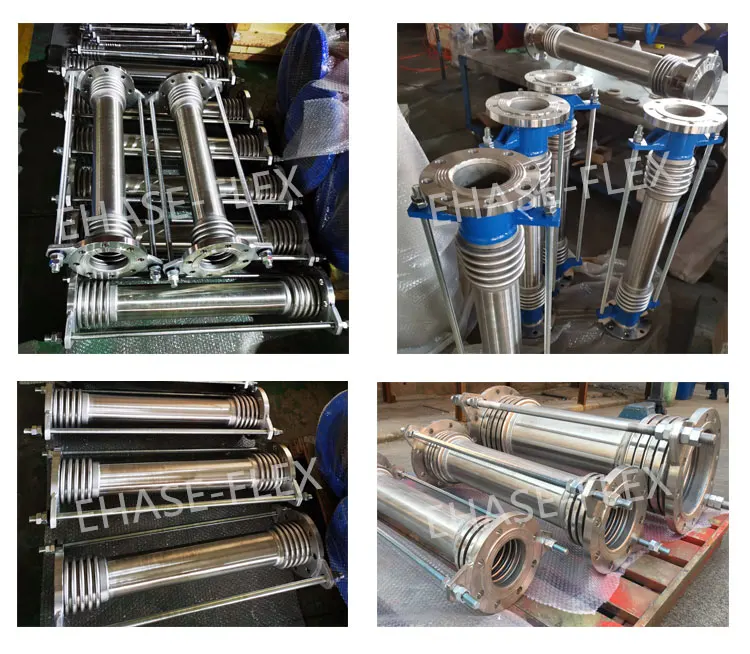

Name: Lateral Movement Stainless Steel Flexible Pipe Fittings Bellows Expansion Joints
SKU: 1005004197978756
Availability: InStock

Type: Other
Brand Name: MLHJ
Origin: Mainland China
Warranty: 1year
Customized support: OEM, ODM
Place of Origin: Zhejiang, China
Brand Name: EHASE-FLEX

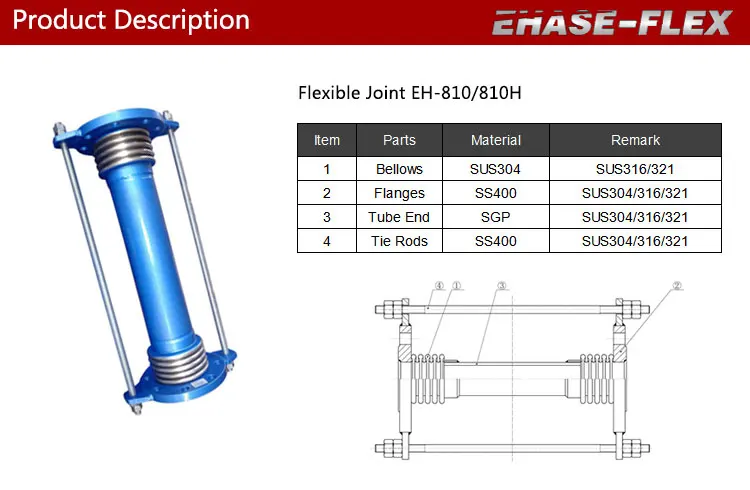

Model Number: EH-810/810H
Technics: Welding
Connection: Flange
Shape: Equal
Head Code: Round
Product name: Lateral Movement Stainless Steel Flexible Metalic Expansion Joint
Size: DN50-DN600
Movement: Axial: -5mm; Laternal: -50mm
Temperature Rating: Max 1000℃
Rated Working Pressure: 10bar,16bar,25bar,40bar,63bar,100bar
Standard: EJMA
Flanged Standard: JIS,ANSI,DIN,BS,JB…
Certificate: ISO
Application: Absorb the movement
OEM/ODM: Allowed

EH-810	50	2	350	40	±5	±50	10
EH-810H								16
EH-810	65	1 1/4	400	50	±5	±50	10
EH-810H								16
EH-810	80	3	400	48	±5	±50	10
EH-810H								16
EH-810	100	4	500	48	±5	±50	10
EH-810H								16
EH-810	125	5	600	60	±5	±50	10
EH-810H								16
EH-810	150	6	600	75	±5	±50	10
EH-810H								16
EH-810	200	8	700	75	±5	±50	10
EH-810H								16
EH-810	250	10	700	100	±5	±50	10
EH-810H								16
EH-810	300	12	1100	100	±5	±50	10
EH-810H								16
EH-810	350	14	1200	120	±5	±50	10
EH-810H								16
EH-810	400	16	1200	160	±5	±50	10
EH-810H								16
EH-810	500	20	1300	200	±5	±50	10
EH-810H								16
EH-810	600	24	1400	220	±5	±50	10
EH-810H								16

Q : Are you trading company or manufacturer?
A: We are manufacturer of Expansion joint, flexible joint, flexible sprinkler hose,flexible tube, flange connection stainless
steel corrugated metal,corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog about 304 flange bellow connection flexible hose with flange.

Q: Can you provide drawings and technical data?
A: Yes, You can send us your request. our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE,Saudi Arabia, Oman, Egypt,Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines,Singapore,HK…
