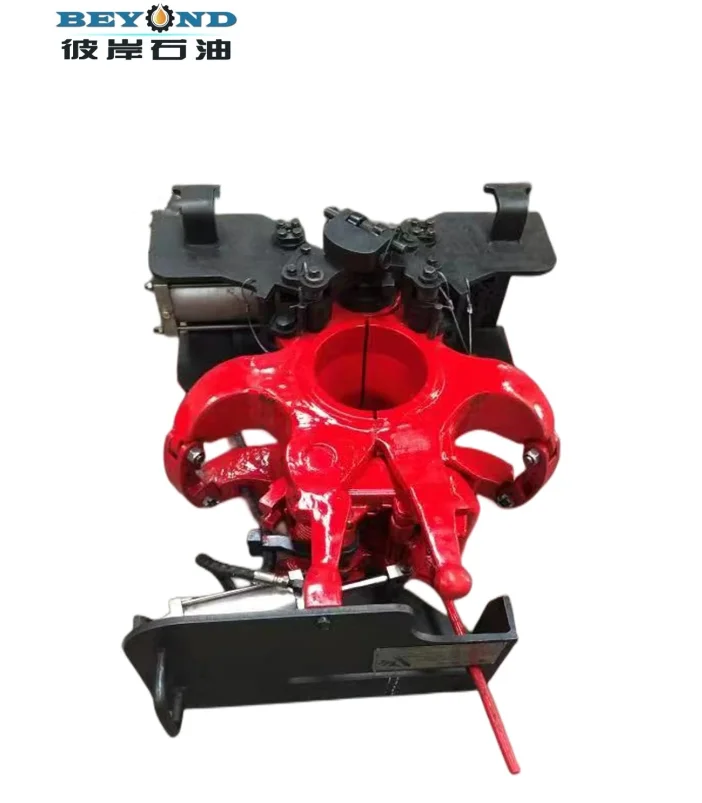

Name: API Oil Drilling Pneumatic Air Elevator for Pipe Casing Wellhead Tools
SKU: 1005005476725128
Availability: InStock

Origin: Mainland China
Certification: CE
Usage: Oil Well
Applicable Industries: Energy & Mining
Showroom Location: Russia, Romania, Kazakhstan, Uzbekistan
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty of core components: 1 Year
Core Components: Motor
Condition: New
Type: wellhead tools
Place of Origin: Shandong, China
Brand Name: BEYOND
Weight: 230 KG
Warranty: 1 Year
Model: DDZ Center Latch Elevators
Application: handling 18 taper shoulder drill pipe
Max. Load Tons(KN): 150 (1350) 250 (2250)
Elevator Sign: 2 3/8 EU
Drill Pipe Size and Style: 2 3/8 EU
Diameter of Elevator Bores: 67
MOQ: 1

Product Parameters

DDZ Elevators :

Model DDZ Center Latch Elevators are suitable for handling 18 taper shoulder drill pipe, drilling tools and etc. The Elevators are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment. DDZ TD means Top Drive Elevator.

^Model	^{Drill Pipe Size and Style}	^{Diameter of Elevator Bores}	^{Elevator Sign}	^{Max. Load Tons(KN)}
DDZ67	23/8EU	67	23/8EU	DDZ 150 (1350) 250 (2250) 350 (3150) 500(4500) DDZ TD 350 (3150) 500(4500)
DDZ83	27/8EU	83	27/8EU
DDZ101	31/2EU	101	31/2EU
DDZ109	4IU	109	4IU
DDZ121	4EU	121	4EU
			41/2IU		41/2IU
			41/2IEU		41/2IEU
DDZ133	41/2EU	133	41/2EU
DDZ133		133	5IEU		5IEU
DDZ148	51/2IEU	148	51/2IEU
DDZ 159	5 7/8IEU	159	5 7/8IEU
DDZ179	6 5/8IEU	179	6 5/8IEU
